How to Measure Cabinet Pull Hole Spacing (2026)

Cabinet pull hole spacing is the single measurement that determines whether a new pull fits your existing holes or forces you to drill — get it right before you buy anything.

TL;DR: Cabinet pull hole spacing (also called center-to-center, or CC) is measured from the center of one mounting hole to the center of the other. The most common sizes in 2026 are 3 inches, 3-3/4 inches, and 5-1/16 inches for standard pulls, and 12 inches for appliance pulls. Measure your existing holes before ordering. If you are drilling new holes, pick a CC that matches the pull you want — not the other way around.

Why This Measurement Makes or Breaks Your Project

A pull that is 1/16 inch off in hole spacing either won't mount at all or will mount crooked. The hardware industry has standardized on a handful of CC dimensions, but manufacturers are not legally required to follow them. In 2026, Knobs.co stocks pulls ranging from 2-1/2 inches CC all the way up to 18 inches CC — that range exists because cabinets vary and so do design preferences. Knowing your exact measurement before you shop eliminates returns and re-drilling.

What You'll Need

• Steel tape measure or a rigid 12-inch ruler (a cloth tape will flex and throw off the reading)
• Pencil or painter's tape for marking
• A pull with known CC dimensions (for verification)
• A drill and appropriate drill bit if installing new hardware
• Template jig (optional but reduces error on multi-door jobs)

Time required: 5 minutes to measure existing holes; 10–15 minutes per door if drilling new holes.

The Steps

Step 1: Identify Whether You Are Measuring Existing Holes or Planning New Ones

This determines your entire approach. If your cabinet already has holes, your job is to find a pull whose CC matches. If you are starting from scratch — new cabinets, painted-over hardware, or a full remodel — you choose the CC first and drill to match.

Existing holes: Measure hole center to hole center. Your pull CC must match this number exactly.

New holes: Choose your pull first, confirm its CC from the product spec, then use that measurement to mark and drill.

Common mistake: measuring from the edge of one hole to the edge of the other. That gives you the gap between holes, not the center-to-center distance. Always measure center to center.

Step 2: Locate the Center of Each Hole

Place a small piece of painter's tape over each hole. Use a pencil to mark the center of the hole on the tape — a small dot directly in the middle. On a standard 1/4-inch drill hole, the center sits 1/8 inch in from any edge.

Do this for both holes. This is the reference point for your measurement.

Expected outcome: two clear center marks on tape.

Common mistake: estimating the center by eye without tape. Even a 1/16-inch error compounds across a kitchen with 30 doors.

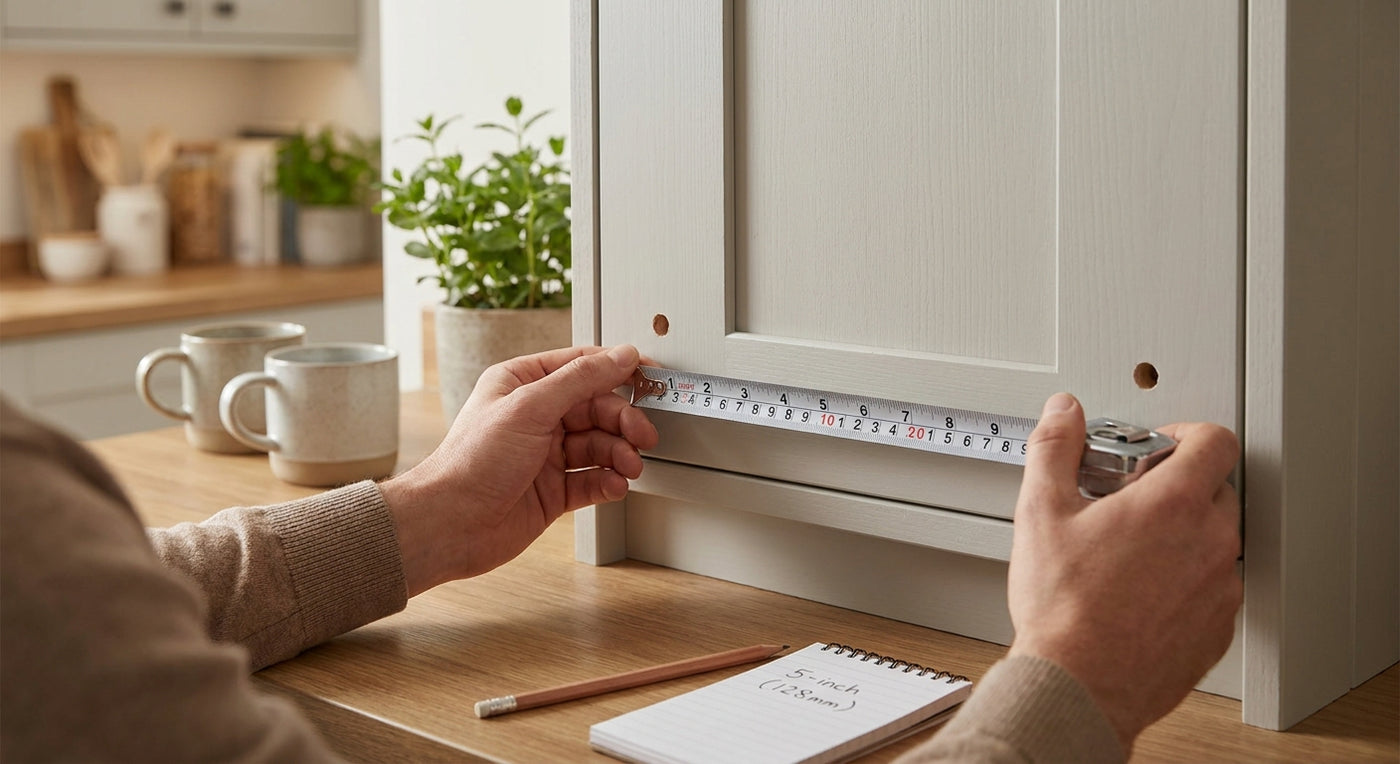

Step 3: Measure Center to Center

Place the tip of your ruler or tape measure on the center mark of the left hole. Read the measurement at the center mark of the right hole.

In 2026, the most common results you will see:

• 3 inches (76mm) — standard drawer and door pull, the most widely stocked CC on the market
• 3-3/4 inches (96mm) — common on European-spec cabinets and many US kitchen lines
• 5-1/16 inches (128mm) — the next step up, popular on mid-size drawer pulls
• 6-5/16 inches (160mm) — larger drawers and pantry doors
• 7-9/16 inches (192mm) — wide drawer pulls
• 8-13/16 inches (224mm) — oversized pulls on full-height pantry doors
• 12 inches — appliance pull territory, used on refrigerators and dishwashers

Record the measurement to the nearest 1/16 inch. Do not round.

Common mistake: rounding 3-3/4 inches down to 3 inches. Those two sizes are not interchangeable.

Step 4: Verify Against the Pull Specification

Every pull listing at Knobs.co states its CC in the product title or specs. A pull listed as Morris Cranford pull 3-3 has a 3-3/4-inch CC. A pull listed as Lynwood Kentfield pull 5-1 has a 5-1/16-inch CC.

Match your measured number to the pull's stated CC. If they match, the pull will drop into your existing holes without any drilling. If they differ by even 1/16 inch, you will need to drill.

Step 5: Mark New Hole Locations (If Drilling)

If you are drilling new holes, use the pull's CC dimension to mark both hole centers on the door or drawer face.

For centered placement on a drawer face:

1. Find the horizontal center of the drawer face.
2. Mark the desired height (typically 1/2 to 2/3 up from the bottom of the drawer face for bar pulls).
3. From the center point, measure half the CC to the left and half to the right.
4. Mark both centers clearly.

For a 3-inch CC pull, mark 1-1/2 inches left and 1-1/2 inches right of center. For a 5-1/16-inch CC pull, mark 2-9/16 inches each direction.

Common mistake: placing both marks without checking they are level. A single off-level installation is visible from across the room. Use a level or laser.

Step 6: Drill and Install

Use a bit sized to the pull's mounting screws — most pulls in 2026 use #8-32 machine screws, which require a 11/64-inch or 3/16-inch hole. Check the pull's included hardware.

Drill from the front face of the door into the cabinet to avoid tear-out on the visible surface. Back the door with a scrap block if possible.

Thread the screws through the back of the door, then tighten the pull from the front. Snug — not torqued. Over-tightening cracks painted doors.

Expected outcome: pull sits flush, both screws engage, door opens smoothly.

Step 7: Repeat Consistently Across All Doors

For multi-door kitchens, use a hardware jig. A jig locks the CC and hole height so every single pull lands in exactly the same spot. Drilling by hand on 40 doors will produce visible inconsistencies by door 20.

Most jigs are adjustable to common CC dimensions — set it once, run it across every door.

Troubleshooting

The pull won't line up even though the CC matches. Check that neither hole drifted during drilling. Re-drill with a jig if needed.

One screw goes in but the other won't thread. The hole centers are not parallel. The drill angle shifted. Re-drill the off-center hole.

The pull rocks side to side after installation. The mounting holes are slightly farther apart than the pull's CC. Use larger washers behind the pull or select a pull with slotted mounting holes.

You can't tell where the center of the existing hole is. Shine a flashlight through from the back of the door. The light pinpoints the center more clearly than visual inspection from the front.

You measured correctly but the pull looks too small for the drawer face. The CC is correct but the overall pull length may not be proportional. A 3-inch CC pull has a total length of roughly 4 to 4-1/2 inches. If the drawer is 18 inches wide, consider a 5-1/16-inch or 6-5/16-inch CC pull instead.

Existing holes are filled from old hardware. Fill with wood filler, sand flush, prime, and repaint before marking new center points. Do not try to drill through filler alone.

Tools and Resources

• Steel tape measure (get one with 1/16-inch markings, not just 1/8-inch)
• Hardware installation jig for multi-door projects
• #8-32 machine screws (typically included with the pull)
• Drill with 11/64-inch or 3/16-inch bit
• Painter's tape and pencil
• Level or laser level

For pulls with specific CC dimensions, browse Knobs.co's catalog organized by center-to-center size. The how to update kitchen cabinets with matte black hardware guide covers finish decisions after you have confirmed your spacing.

FAQ

What is cabinet pull hole spacing? Cabinet pull hole spacing is the center-to-center distance between the two mounting holes on a pull. It is measured in inches or millimeters from the middle of one hole to the middle of the other.

What is the most common cabinet pull hole spacing in 2026? Three inches (76mm) is the most common CC for standard pulls. For appliance pulls — refrigerators, dishwashers — 12 inches is the standard in 2026.

Can I replace a 3-inch pull with a 3-3/4-inch pull without drilling new holes? No. A 3-inch CC and a 3-3/4-inch CC pull are not interchangeable. The hole centers are 3/4 inch apart in spacing — you will need to fill the old holes and drill new ones.

What happens if my measurement falls between standard sizes? Many custom-built or older cabinets have non-standard spacing. Your options are to fill and re-drill to a standard CC, use a pull with slotted mounting holes that accommodate a range of CCs, or have a single-hole knob installed instead.

How do I measure cabinet pull hole spacing on a drawer with only one hole? A single-hole installation takes a knob, not a pull. Knobs mount on one screw and have no CC measurement.

What CC should I use when installing hardware for the first time on new cabinets in 2026? Choose your pull first, then drill to its CC. The most versatile options are 3-inch and 3-3/4-inch CC, as both sizes are stocked widely across price points and finish options.

Is center-to-center the same as the total length of the pull? No. The CC is smaller than the total length. A pull with a 3-inch CC has a total body length of roughly 4 to 4-1/2 inches, including the end posts.

Do appliance pulls use the same CC measurements as cabinet pulls? No. Appliance pulls are designed for refrigerators, dishwashers, and range hoods and typically use 12-inch or 18-inch CC. Standard cabinet pulls run from 2-1/2 inches to 8-13/16 inches CC.

One Last Thing

The 96mm (3-3/4 inch) CC dimension comes directly from a European cabinet manufacturing standard — it is the baseline spacing for 32mm system cabinetry, which dominates factory-built European kitchens and shows up in a significant portion of US flat-panel cabinets manufactured in 2026. If your cabinetry was imported or made in Europe, 3-3/4 inches is almost certainly your CC — check before you assume the US standard of 3 inches applies.
